Comfort Series
01

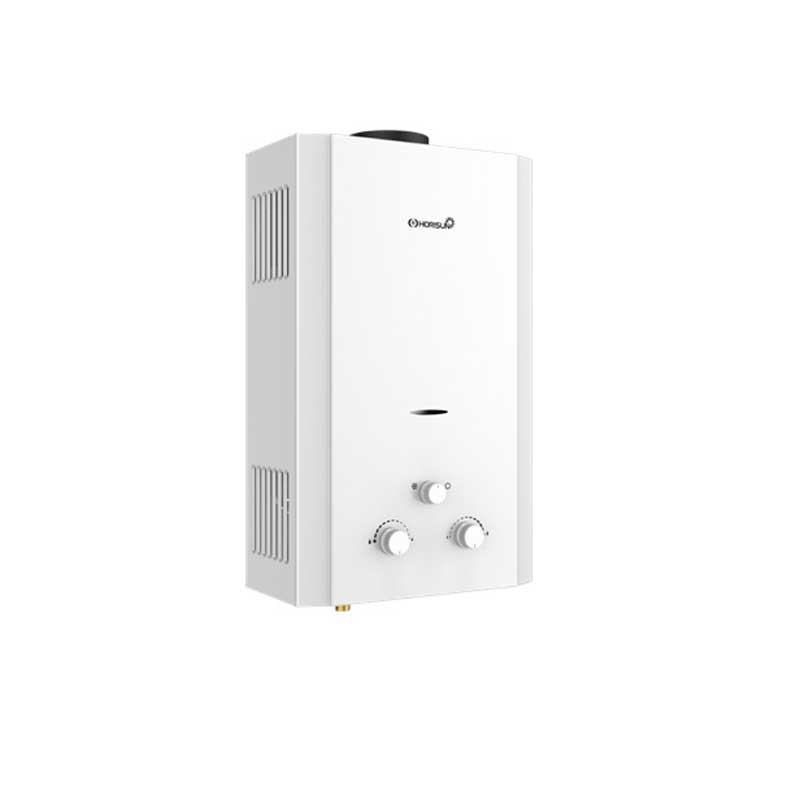

KC-200E、KC-200F Over-Water Pressure Protection
Product features
Model No.: KC-200E、KC-200F
FEATURES
● Modern design
● 0.015Mpa/0.025Mpa water pressure start-up
● Winter & Summer mode optional
Product parameters
| SPECIFICATION | |||||
| Rated Power | 10KW/12KW | 14KW | 16KW | 20KW | 24KW |
| Exhaust Type | Flue type | Flue type | Flue type | Flue type | Flue type |
| Water Flow(Ltr/min)△T=25k" | 5L/6L | 7L | 8L | 10L | 12L |
| Chimney Diameter(mm) | φ90 | φ90 | φ108 | φ110 | φ110 |
| Water Pressure Range | 0.015-0.8Mpa | 0.015-0.8Mpa | 0.015-0.8Mpa | 0.015-0.8Mpa | 0.015-0.8Mpa |
| Power Supply | DC,3V | DC,3V | DC,3V | DC,3V | DC,3V |
| Product Dimension (mm) | 440*300*138 | 520*320*168 | 520*320*168 | 550*330*188 | 610*350*188 |
| Packing Dimension (mm) | 530*360*188 | 640*375*220 | 640*375*220 | 675*235*390 | 715*405*238 |
| Net Weight | 5.3kg | 6.8kg | 7kg | 7.8kg | 12kg |
| Gross Weight | 6.5kg | 8kg | 8.2kg | 9kg | 13.5kg |
| Loading Quantity 20GP/40HQ(pcs) | 800/2020 | 530/1300 | 530/1300 | 450/1100 | 400/1000 |
About KC-200E and KC-200F gas water heaters
Leading the new trend of hot water, KC-200E and KC-200F gas water heaters meet the hot water needs of different households with their wide power options of 2/14/16/20/24KW and diverse capacities of 6/7/8/10/12L. These two models, with their modern design language, not only enhance the aesthetics of homes, but also win the favor of the market with their outstanding performance. They can start at water pressures as low as 0.015Mpa/0.025Mpa, and work stably even in unstable water pressures, providing you with uninterrupted hot water supply. Specially designed winter and summer modes allow you to enjoy suitable water temperature in different seasons, whether it's warm bathing in winter or cool rinsing in summer, you can easily cope. KC-200E and KC-200F are not only gas water heaters, but also powerful assistants for your comfortable life. Choose us and enjoy a smart and temperature controlled hot water lifestyle, making every day start and end warm and comfortable.
We can accept OEM and ODM orders, and the factory can customize and produce suitable products for your local market based on the usage standards of the products you purchase. Please feel free to inquire about cooperation details!
